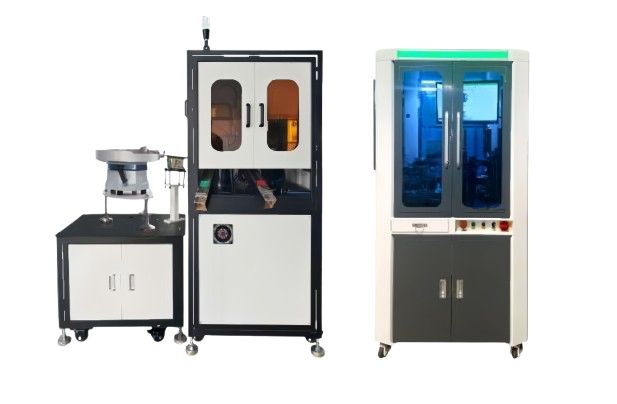

Introduction of Machine
High-precision automated assembly and inspection system designed for consistent, reliable production performance across various manufacturing applications.
Equipment Overview
Visual Inspection Equipment
Two-Part System
Feeding Device + Inspection Machine
01 Feed Method
Feed Type A
Stainless Steel Vibration Tray
Versatile — speed adjustable according to size and shape of product
Feed Type B
Precision Aluminum Plate
Inductance, resistance, capacitance, LED, magnetic material — 500–3000 per minute
Feed Type C
Pushing Machine
Square or cylindrical metal products
02 Test the Host
Length
900 × 1500 × 1800 mm
Power
1470W
AC 220V
Weight
230kg
Pressure
Intake pipe Ø8mm
0.4 – 0.6 Mpa
0.4 – 0.6 Mpa
Vision System
Vision V632 standard edition & AI comprehensive edition
Operation Control System
32 Camera standard edition
Industrial Camera
HIK Hikvision and BASLER camera
Axis of Rotation
High precision DD motor
Industrial PC
High configuration industrial computer — processing software signals
Electromagnetic Valve
MAC imported from the United States — corresponds to classification of good products and defective products for export
03 Measuring Ability
Dimensional Measurement
0.002 mm
Repeatability accuracy
Detection Speed
3000 /min
Maximum detection speed
Color Discrimination
Red, orange, yellow, green, blue, indigo and violet
Macroscopic Irregularity
Stamping, scratches, bulges, missing material, excess material, burrs, flanges, blockage
Character Recognition
Strings, single characters and numbers
Product Classification
Mixing, specifications
Introduction of testing and sorting machine
The visual inspection equipment consists of two parts: feeding part and detection host
Machine Specifications
Introduction of Testing
and Sorting Machine
Full system technical breakdown
01 Feed Method
Feed Type A
Windlass
Silicone, rubber, hybrid parts and other elastic products
Feed Type B
Puppet Strings
Large and irregular products
02 Test the Host
Length
1100×1200×1800 mm
2750×1200×1800 mm
2750×1200×1800 mm
Power
1470W
AC 220V
Weight
450kg
Pressure
Intake pipe Ø8mm
0.4 – 0.6 Mpa
0.4 – 0.6 Mpa
Vision System
Vision V632 standard edition & AI comprehensive edition
Operation Control
32 Camera standard edition
Industrial Camera
HIK Hikvision and BASLER camera
Axis of Rotation
High precision DD motor
Industrial PC
High configuration industrial computer — processing software signals
Electromagnetic Valve
The MAC imported by the United States — corresponds to the classification of good and defective products for export
03 Measuring Ability
Dimensional Measurement
0.002 mm
Repeatability measurement accuracy
Detection Speed
3000 /min
Maximum detection speed
Color Discrimination
Red, orange, yellow, green, blue, indigo and violet
Macroscopic Irregularity
Stamping, scratches, bulges, missing material, excess material, burrs, flanges, and blockage
Character Recognition
Strings, single characters and numbers
Product Classification
Mixing, specifications
Every part, verified.
Live footage from the inspection line — how the system checks small components at speed, flags defects, and keeps every batch consistent.
Inspection Capability
Test Products
Products compatible with our visual inspection system 21 types

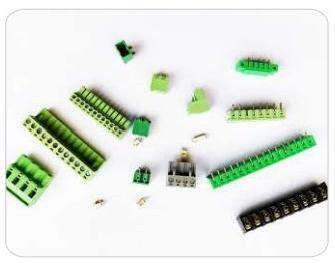

Terminal
Electronics

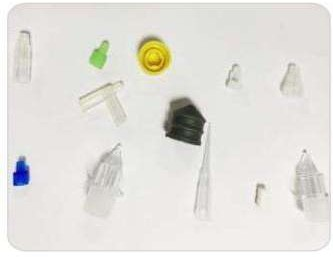

Medical Products
Medical

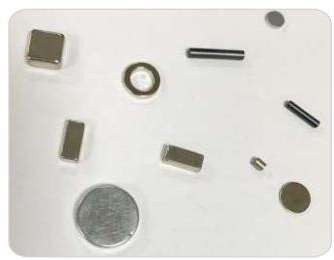

Magnetic Material
Industrial

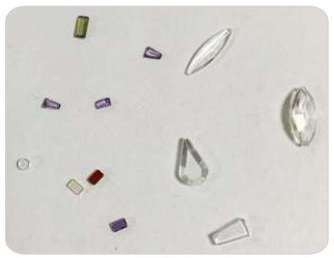

Artificial Gemstones
Precision

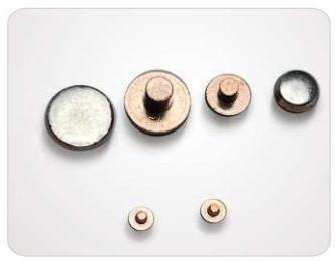

Silver Contact
Electronics

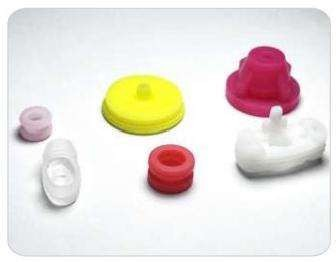

E-cigarette Accessories
Consumer

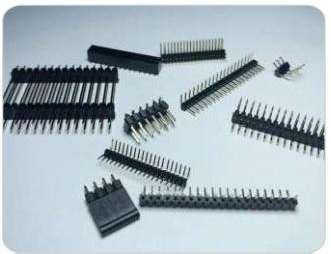

Contact Pin
Electronics

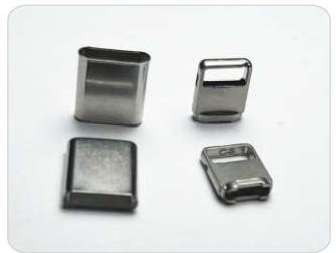

TYPE-C
Connector

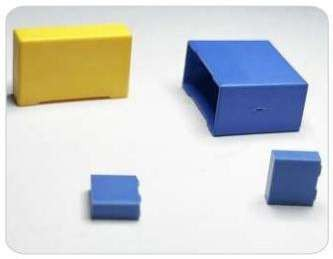

Relay Housing
Industrial

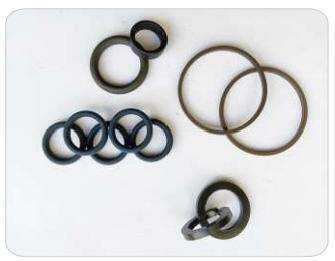

Burning the Ring
Industrial

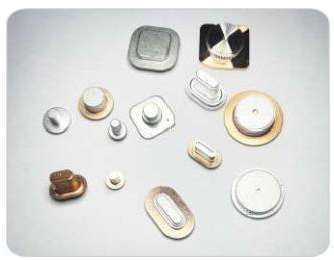

Battery Terminals
Electronics

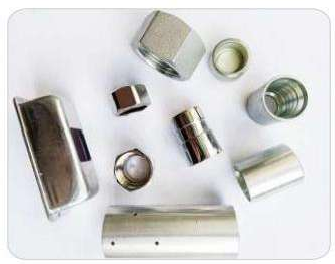

Auto Parts
Automotive

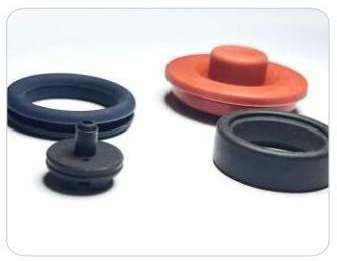

Rubber Item
Industrial

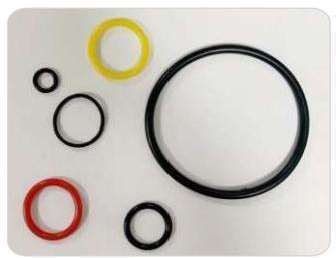

Gasket Ring
Industrial

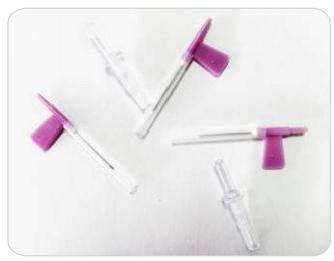

Medical Needles
Medical

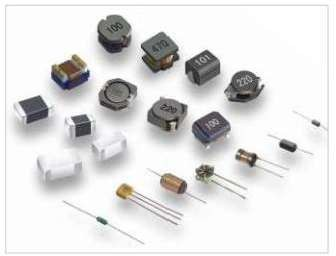

Capacitor Resistance
Electronics

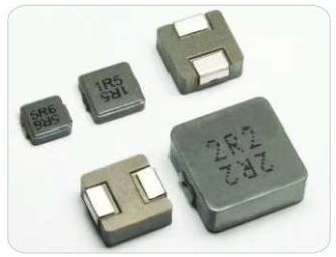

Integrated Inductor
Electronics

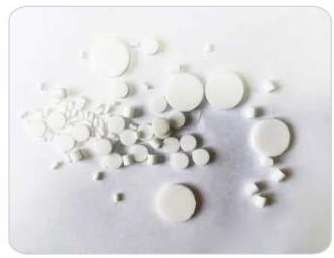

Powder Die Casting
Precision

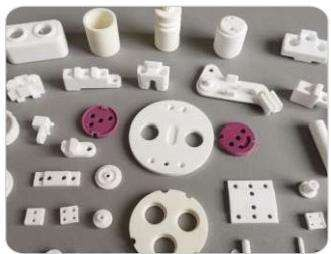

Ceramic Pieces
Industrial

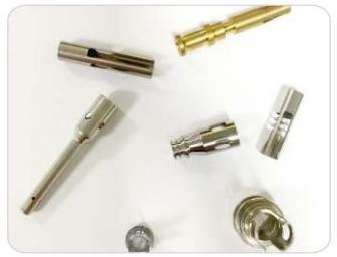

E-cigarette Hardware
Consumer

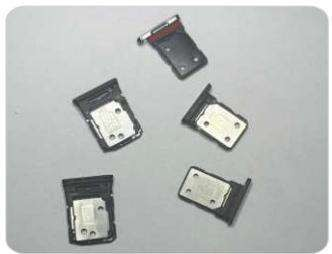

Cell Phone Slot
Electronics

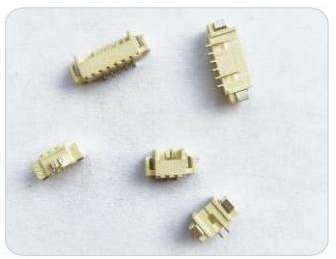

Connecting Plug
Connector

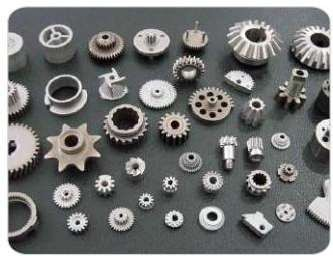

Powder Metallurgy
Precision

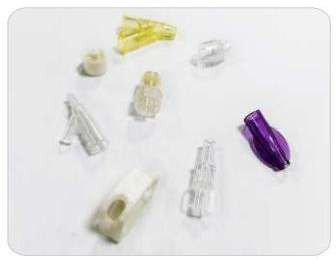

Medical Accessories
Medical
